JACC64 16K

C64 16K ROM Cartridge

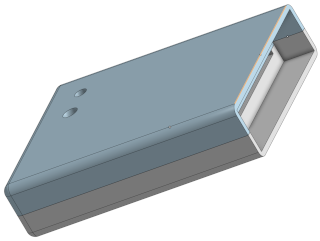

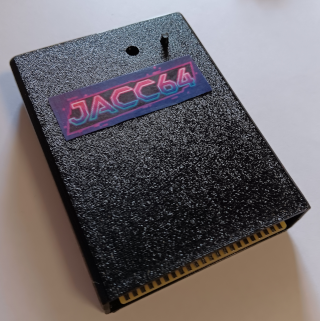

JACC64 16K Image JACC64 16K Image

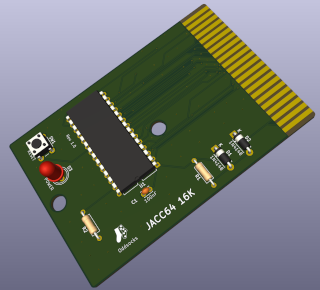

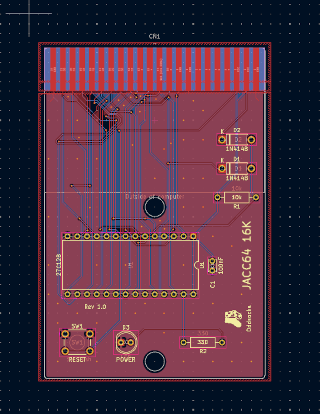

JACC64 16K - Just Another Commodore Cartridge 16K. A simple ROM cartridge for the Commodore 64 which takes an EPROM/EEPROM with a 16K image

Features

  • 16K ROM
  • Power LED
  • Reset Switch

BOM (THT)

  • 1 x 27C128 EPROM (or compatible)
  • 1 x wide 28pin DIP socket (optional)
  • 1 x 5MM LED
  • 1 x 10 KOhm resistor
  • 1 x 330 Ohm resistor
  • 2 x 1N4148 diodes
  • 1 x 100nF ceramic capacitor
  • 1 x 6mm tactile switch
