Mount Winchester FL16

Full length ISA Hard Card

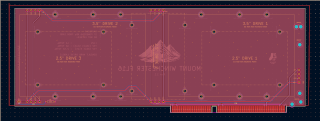

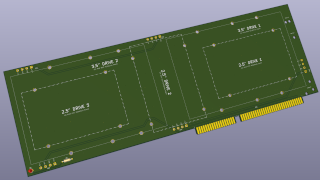

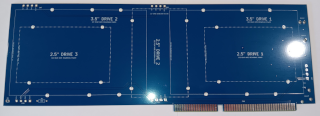

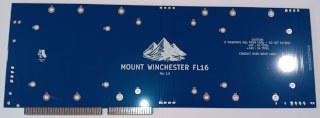

Mount Winchester Image Mount Winchester Image

A full length 16bit ISA Hard Card

Features

  • Make use of those ISA slots by mounting up to 2 x 3.5" drives or 3 x 2.5" drives (or a combination)
  • Hard drives can be powered directly from the card, or from the power supply.
  • 5 power points for attaching up to 5 power cables which can be either Molex or SATA
  • Power LED

BOM (THT)

  • 1 x 330 Ohm Resistor
  • 1 x 3mm LED
  • Up to 5 x Molex or SATA power connector cables (optional)
