XA1541 Active

Connect Commodore floppy drives to the PC

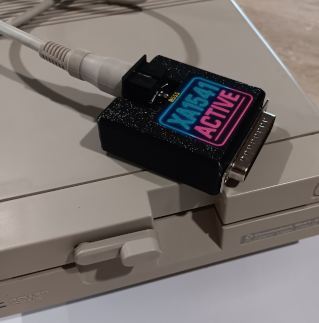

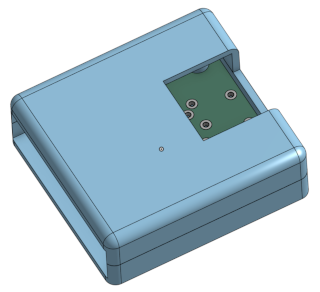

XA1541 Image XA1541 Image

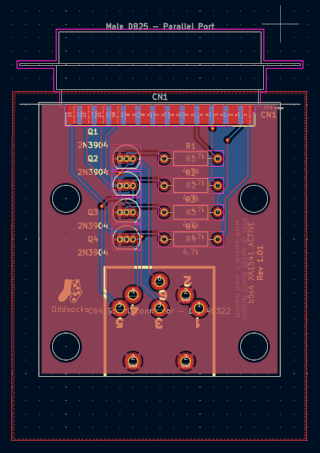

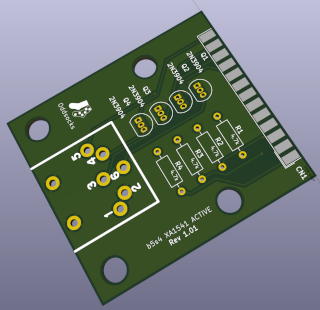

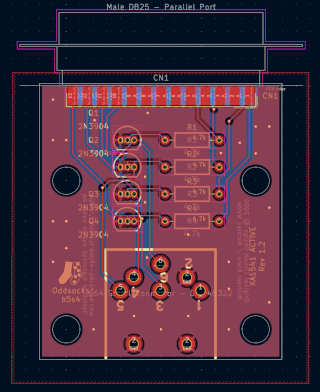

XA1541 Active - Connect Commdore floppy drives such as the 1541 to the parallel port of the PC to read and write native Commodore disks, original circuit design is © Michael Klein and Nicolas Welte. Original XA1541 site

BOM (THT)

  • 4 x 2N3904 transistors
  • 4 x 4.7 KOhm resistors
  • 1 x DB25 Male Edge Mount connector
  • 1 x through hole DIN 45322 connector
